5010 Series
5010 Series

5010 Series

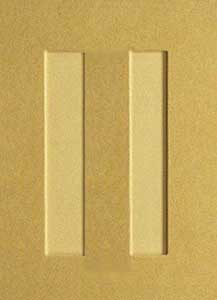

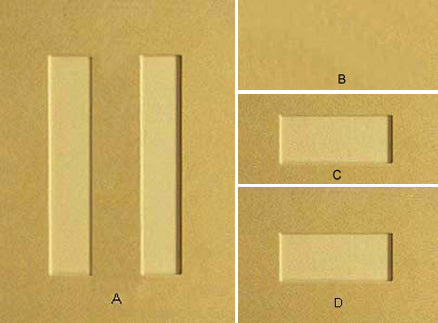

The 5010 Shaker Series door is a double recessed (1/4") flat panel door.
The minimum width for a 5010 shaker door is 12"
Center stile is same width as rails (2 1/2" standard)
Available only in classic design.
The standard rail width is 2 1/2" (edge of door to start of rail profile) please specify if different width is required.
The minimum width and height for door and drawer fronts is 6" (leaves a 1" center panel).
Drawer fronts under 6", must be ordered as a SLAB drawer front.
Shaker doors can be ordered with beaded panels (standard is 2" on center) if required, order as "5010 beaded".
Doors may be ordered in imperial or metric measurements.
Maximum width is 48" Maximum height is 96".
All outside edge profiles (lips) are available on this door. Please specify when ordering.
Can be ordered with raw MDF back or 110 gram white melamine back.
All doors & drawer fronts made from 3/4" premium all softwood MDF.
