6100 Series

6100 Series

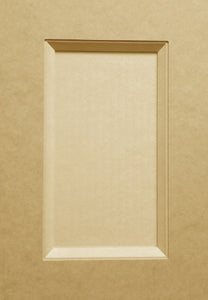

Available classic design only
The standard rail width is 2" (see drawing).
Please specify if different width is required
The rail profile width is 1/2" wide (see drawing)
For doors (A) and full rail drawer fronts (D), the minimum width and height is 7" (leaves a 2" wide flat centre panel)
Drawer fronts (C) shown with a 1" top & bottom rail. The minimum height is 5" (leaves a 2" high flat centre panel)
Drawer fronts under these measurements should be ordered as a slab drawer front (B)
Larger doors can be made with double panels. Please specify panel and rail measurements
All outside edge profiles (lips) are available on this door
Available in 3/4" raw, 3/4" white melamine back, & 7/8" raw MDF
