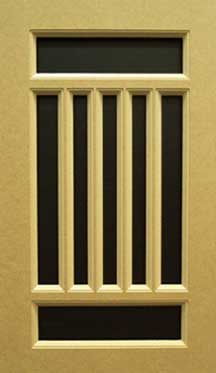

AF-1 Frame

The AF-1 glass frame door is recessed in the back to accept a single piece of glass.
The vertical mullions are 1" wide (3/4" on Shaker doors).
The two horizontal mullions are 1 1/2" wide.
Available in all rail profiles.
See door profile specifications for details for each profile available.
Back recess is grooved for plastic glass retainer which is supplied with doors at no extra charge.
The top & bottom openings are 2 1/2" high.
The three vertical openings in the center are each 1" wide.
Minimum size is 15" x 26" which will allow approximately 2 1/2" width for each of the three top openings. Any smaller sizes may affect the proportionate look of the door.
Min size is based on 2" rails.
